Carbon Composition Resistors are shifting in value during PCB Assembly, are we overheating them?

Carbon comp resistors can shift in value from overheating so yes, they might be overheating during your soldering process. They also increase in resistance due to moisture absorption. Refer to Table 1 for the recommended preconditioning schedule to bake out the moisture. Lastly, carbon comp resistors can also shift up quite a bit if excessive strain is applied to lead wires (such as using a bending tool or machine that doesn’t provide strain relief, bending too close to body, etc.).


Carbon comp resistors are great for withstanding power overloads but unfortunately are more sensitive than most other resistors in regard to environmental or physical factors such as temperature, humidity, lead stress, etc. Try to minimize soldering heat and moisture absorption but most importantly, be careful not to impart any stress inside the body when forming the leads or mounting to PCB.


If the carbon comp resistor doesn’t meet the stability requirements of the circuit, contact RCD engineering to determine whether there’s another resistor construction available that will meet all the requirements. If surge is involved this might require a larger body size.

What is the effect of moisture on Carbon Composition Resistors, and can this be reversed?

As carbon composition resistors absorb moisture their resistance increases over time, as the resistor approaches saturation. Under high humidity conditions it is not unusual for parts to increase 6% in resistance in as little as 72 hours.


As the carbon compositions are dried their resistance decreases over time. Reversing the effect of moisture on the part’s resistance is accomplished by storing them in a controlled low humidity area or by conditioning them in a convection oven at 100°C.

RatingConditioning time @ 100°C
1/8W25 hours
1/4W50 hours
1/2W75 hours
1W120 hours
2W130 hours

What is the difference between Convex and Concave terminations, and which is better?

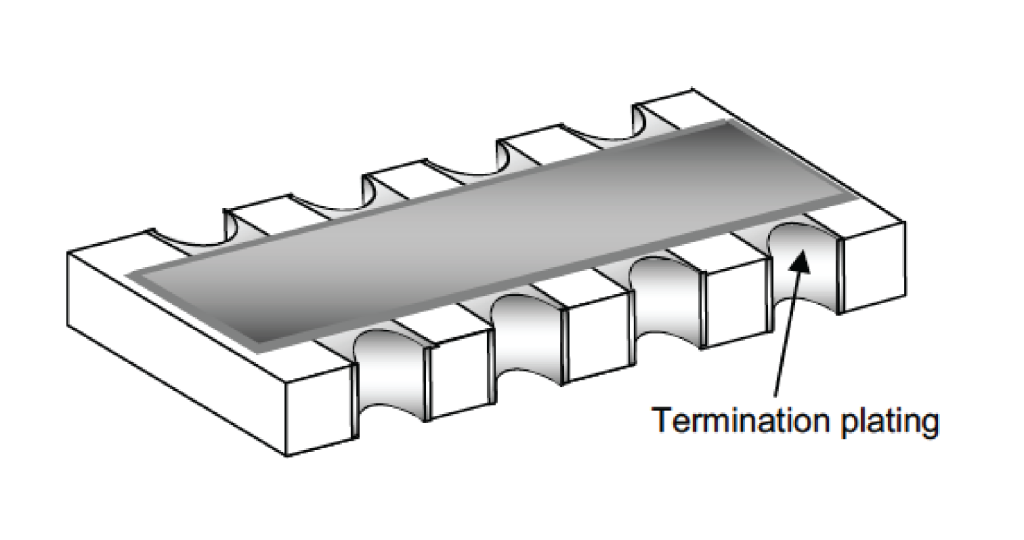

Concave Terminations
(RCD CN Series)

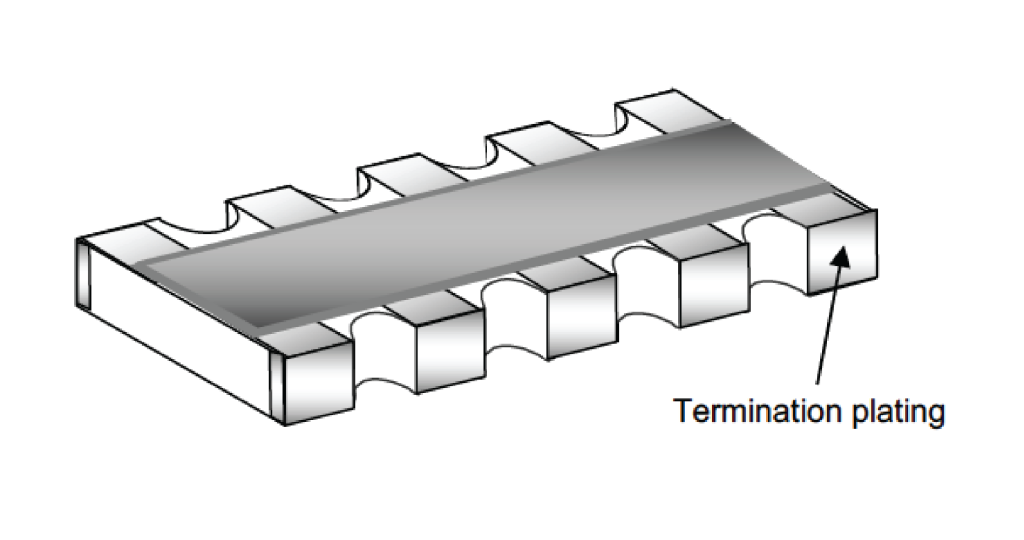

Convex Terminations
(RCD SMN Series)

Chip arrays are available in two styles (as illustrated above). The concave chip arrays (RCD CN series) have recessed terminations whereas the convex arrays (SMN series) have protruding terminations. Some resistor manufacturers offer only one type and some offer the other (more offer convex than concave).

Some customers prefer one type, some the other (convex is more popular). RCD originally offered only the convex version (1985) but later developed the concave version (1991) in order to meet the requirements of all customers. The convex version is generally the lower-cost version resulting from greater popularity and higher production volumes.

Some customers prefer the convex version due to larger clearance between terminations (typically 0.3mm vs. 0.25mm) which reduces the likelihood of solder bridging and short circuits. Another advantage of the convex termination is that optical inspection is faster and easier since the terminations are clearly visible instead of being embedded within the outline of the chip.

Some customers have found that the concave geometry offers superior self-alignment of skewed components during reflow soldering, yet others have found that the larger termination area of convex parts enhances self-alignment. RCD doesn’t take a position in which is “better” but can offer samples of both for customer evaluation.

What altitude will your resistors operate at?

Operation at high altitudes can cause increased self-heating as well as corona and arcing, especially if moisture is present. All of RCD’s standard catalog resistor models will operate at altitudes of 50,000 feet (equates to a pressure of 3.44 inches of mercury). Some models are available to 100,000 feet or higher (0.315 inches of mercury). When standard resistors aren’t suitable, RCD can generally offer custom-designed options for operation at even greater altitudes. RCD’s Test Lab can perform specific test screening for customers using precision vacuum equipment.


Since performance is affected by altitude, the general rule of thumb recommended by RCD to ensure safe and reliable operation is to derate the power/voltage/current ratings by 10% to 20% per 10,000 feet.

As for depths below sea level, RCD has not evaluated products but has been advised that various resistors function well at -500 ft (30.47 inches of Hg).

Which resistors are best in ESD (Electro-Static Discharge) applications?

Resistors specifically designed for high surges are best, such as composition styles are best (refer to RCD series CC, PR, PRM, PCN). Without going to a specialty resistor the customer should concentrate on wirewound resistors, followed by thick film resistors. Thin film resistors tend to be the most sensitive although they are generally OK in most applications. Larger sizes enable greater ESD capability. RCD specializes in pulse-tolerant resistors and can assist in product selection.

Can we operate all resistors up to the maximum voltage rating?

No, only those resistors with a suitably high resistance value (at or above the “critical resistance value”) may be operated at the maximum voltage rating.


Most resistors carry a RCWV (rated continuous working voltage) rating, also known as the Maximum Voltage Rating. This is the maximum DC or ACRMS (or ACPEAK on some resistor types) voltage that the resistor size is designed to withstand across its terminals, or across its internal construction. The actual working voltage for a particular part and resistance value is determined by the formula E=(PR) 1/2 , E (voltage) not to exceed the maximum RCWV.


For a given voltage and a given power rating there is only one value of resistance that will dissipate full rated power at rated voltage. This value of resistance is commonly referred to as the “critical resistance”. For values of resistance below the critical value, the maximum (element) voltage is never reached and, for values above the critical value, the power dissipated becomes lower than rated. As such, the resistor power and voltage ratings are an  “either/or” rating, i.e. resistors are limited by their power rating (typically lower resistance values) or by their voltage rating ( higher values), whichever is less.


Example: RCD type MC1206 20,000 ohm chip resistor has a power rating of 0.25W and a Max Voltage Rating of 200V. Can the part be operated at 200V? The answer is “no” because 200V across 20,000 ohms equates to 2 watts (P=E2/R so P=2002/20,000= 2 watts). At 200V the parts would quickly overheat since this is 8 times the wattage rating! The actual working voltage of MC1206 100 ohm is determined by E=(PR) 1/2 or (.25 x 20,000)1/2 = 70.7V.


RCD offers a wide range of customized voltage options via use of specialty materials and designs if the standard voltage rating isn’t adequate. These specialty designs can typically offer 50% to 200% increases in voltage levels above standard models.

How closely do RCD Resistors match each other with regards to resistance value?

Unless specifically prearranged before ordering, there is no guaranteed resistance tracking/matching level. Parts with an absolute tolerance of 1% therefore will track within a range of 2% (i.e. – 1% to +1%). Nothing better is guaranteed or implied. In actuality though, if all parts are manufactured at same time under the same conditions, the distribution will typically follow a somewhat normal bell curve, i.e., fairly normal Gaussian kurtosis approximately centered on the nominal resistance value. Some lots are skewed more toward high side of tolerance, others to low side. Other lots are more leptokurtic (tightly distributed) than others. On some occasions, 1% parts are binned from 5% orders, so these orders could have fairly flat or platykurtic curves. In order to guarantee a tightened matching level, simply advise your resistance matching requirements, so that RCD can quote and produce accordingly. Depending on the product, RCD can often achieve tolerance matching to 0.01% or tighter.

How closely do RCD Resistors track each other with regards to TCR?

Unless indicated otherwise on data sheet, or specifically prearranged before ordering, there is no guaranteed TCR tracking level. Parts with an absolute TC of 10ppm therefore will track within a range of 20ppm (i.e. – 10 to +10ppm). In actuality though, if all parts are manufactured at same time under the same conditions, the TC might track much more closely. In order to guarantee a tightened tracking level, simply advise your TC tracking requirements, so that RCD quotes and produces accordingly. Depending on the product, RCD can often achieve TC tracking to 1ppm or tighter.

What are the outgassing levels of RCD's Resistors?

The level of outgassing depends on the product and loading conditions. When outgassing is a concern, we can utilize a special ceramic coating (on most products) which is supplied to a variety of aircraft and Space applications. We don’t have ability to test outgassing at our lab here but have been told by customers that it is excellent (less than 1% total mass loss and less than 0.1% volatile condensable material). We can supply samples for customer verification or send to an external Materials Test Laboratory (cost to be borne by customer).

What is the "Voltage Coefficient" of a Resistor and why is it important?

The voltage coefficient is the temporary shift in resistance due to application of voltage across a resistor; typically measured at 10% rated V & 100% rated V, after correcting for self-heating effects. This is generally caused by molecular irregularities in the resistance element. It is similar to the temperature coefficient except voltage-based instead of temperature. It doesn’t relate to pulse capability (some parts with near-zero VC will shift far more and open sooner than other parts with relatively high VC’s).

One of the main purposes for knowing the VC is to improve circuit accuracy (especially in high voltage circuits). For instance, if a part has 10ppm VC (.001%/volt) then the part will shift from its nominal value by up to 1% at 1KV. That may be fine for a 10% circuit but obviously could present a severe problem to a 0.1% circuit.

RCD offers a wide range of customized options via the use of specialty materials and processing to achieve improved VC stability, if the standard rating isn’t adequate.

Which resistor technology is best for precision applications?

There are three basic precision resistor technologies… wirewound, thin film, and foil. Although there are some variations, the vast majority of parts in all three technologies utilize Nickel Chromium as the resistive material. There are very few firms that produce all three technologies, so keep in mind that the info received from other manufacturers might be slanted toward their respective products.

The oldest of these technologies is wirewound. RCD’s President, Louis J. Arcidy, was instrumental in the development and advancement of this technology since the early 1950’s. RCD was founded 4 decades ago to produce ultra-precision WW resistors, and still maintains a dominant position in this market. Wirewound resistors have traditionally been regarded as the “Cadillac” of the industry, and to this day are greatly preferred in some applications such as high-end audio and medical instrumentation. WW resistors have the greatest mass of resistance material which, with proper processing, results in highest stability, lowest noise, lowest VC, and greatest overload capability. It is this reason that nearly all Resistance Standards, i.e., those used by NIST and other Test Laboratories to calibrate precision measuring equipment, are wirewound technology.

Foil resistors evolved just after wirewounds and attracted a loyal customer base particularly in higher frequency applications due to low inductance and smaller PCB real estate. Foil technology has traditionally offered performance levels approaching that of wirewounds at pricing which was typically 20% more economical. Recent advances in foil technology have resulted in temperature coefficients that are equal or better than those of wirewounds, and thermal EMF’s that are approximately equal. The best wirewound resistors are typically 0.5 to 1ppm/E TCR, whereas some foil resistors are now available as low as .25ppm/EC. Very few applications require tighter than 1ppm to 5ppm so these can typically be filled by WW or foil technology.

Thin film resistors have encroached upon both WW and foil technology, and are particularly cost effective in less precise applications, i.e. tolerances of 0.020% to 0.10% and temperature coefficients in the range of 5ppm or larger. The pricing advantage over WW and foil technology is especially significant in higher resistance values (i.e., 100Kohm and above). Performance levels have steadily improved and although not quite at the level of WW and foil yet, are still suitable for many precision applications, especially in environmentally controlled environments, and applications without pulses/surges.

Precision wirewound resistors therefore are generally the best all-around choice for precision DC and low frequency AC applications (due to inherent inductance of WW construction, they are generally not suitable for high frequency applications). The major disadvantage of wirewound resistors (other than higher inductance level) has always been “pricing”, but with offshore production capability and advancements in automation, RCD’s wirewounds often now sell at a 20% discount to foil resistors instead of the traditional 25% premium! As a result, many customers have been switching away from film and even more so from foil technologies in favor of wirewounds over the past few years.

Are Silicone Coated Resistors Compatible with Aqueous Cleaning Systems?

Yes, RCD’s silicone coated wirewound resistors (such as Series 100, 200, T, and RW) are compatible with aqueous cleaning systems however the coating is designed to be softer than others to enable the resistance wire to expand and contract in use (thereby offering greater stability and higher surge capabilities). Customers should avoid any harsh brushing or high pressure on parts. The parts should also be promptly dried after washing.

How do 4-Terminal Current Sensing Resistors function?

When current terminals I1 and I2 are connected to load, the voltage flows through terminal I1, then through the current sensing resistor element, and the other current terminal (I2).  The same voltage is generated between terminal E1 and terminal E2 as well as at the both ends of the current sensing resistor. This voltage enables the detection of the flowing current.

Current [I] = Voltage [E] / current sensing resistance [R]

Though voltage generates at the terminals in a current circuit, it is not included in a voltage sensing circuit so it need not be considered. The terminal resistance (aE1 and bE2) is quite small related to impedance in a voltage sensing circuit, so it is possible to measure the current accurately without any consideration about resistance.

Refer to Engineering Report R-31 for additional information.

What do you recommend for clearance between PCB and the Fuse Resistor body?

Our general rule of thumb for is to have approximately a 13mm (1/2″) clearance between the body of resistor and any combustible materials. Some customers utilize much smaller clearances depending on the PCB material and the fault condition. If the only possible fault is one in which the resistor will fuse very quickly, then there shouldn’t be enough time for the generated heat to transfer to PCB or nearby components. If however the fault could conceivably result in the resistor “hanging in” for seconds or minutes, then the resistor body could reach very high temps before fusing and could char or ignite the PCB or nearby components. If unable to achieve the recommended clearance, customers should evaluate prototypes under worst case conditions. Even a very small clearance such as 1mm would be far better than mounting the resistor body directly on the PCB since the air space acts as an insulator. Fuse resistor models which include a built-in thermal cutoff (such as RCD’s TF and LF Series) will not achieve the same temperature extremes and therefore can generally be mounted closer to the PCB and adjacent components.

What happens when Wirewound Resistors are used beyond their ratings?

Power wirewound resistors are often utilized in fairly high voltage applications (pulse or continuous). Since the breakdown voltage of most models is 1000’s of volts per centimeter of length, high voltage levels can be achieved with long body lengths, particularly in applications where substantial inductance isn’t a problem. If the resistor is subjected to an excessive amount of voltage or energy, the failure mode for these resistors can cause catastrophic damage to other components.

A wirewound resistor is made by winding a fine resistance wire, such as Nichrome, on a ceramic rod. If a small open develops in the winding due to excessive power/voltage/energy level, an arc will form at the gap, melting the wire back, making the arc bigger. As the process continues, the results can be rather explosive especially at high voltage levels. And since the failure mode can be a partial or full short through the resistor, it is likely that additional components in the circuit will be damaged. Never exceed the resistor’s ratings. RCD generally offers both continuous and short-term ratings (since resistors are capable of overloads for short periods). Our engineers are always available to assist in product selection. In some instances, a slightly modified design can result in a large increase in overload capability for little or no extra cost.
